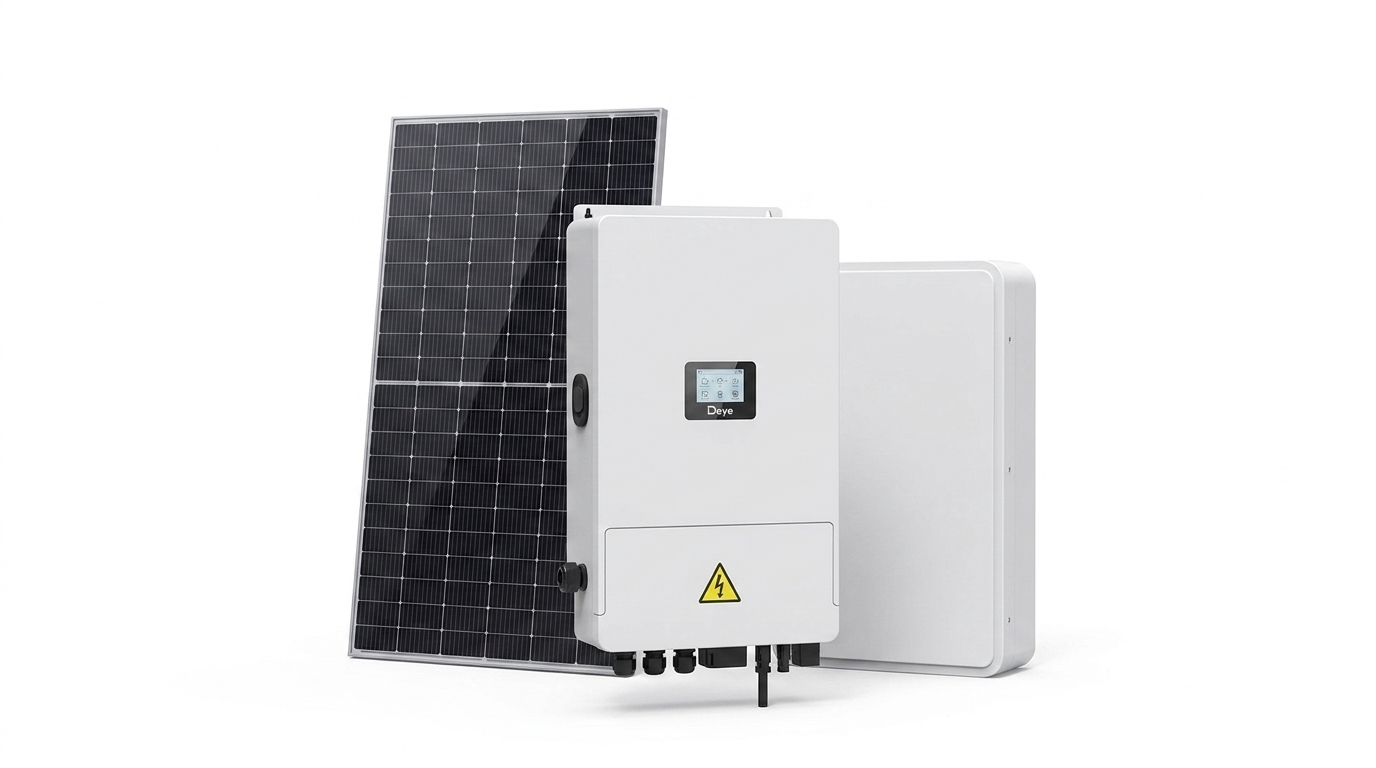

The Deye SUN-5K-SG05LP1-EU is a versatile 5kW single-phase hybrid inverter designed for solar, battery storage and backup power applications. It can be integrated into new installations or AC-coupled with an existing solar system.

The inverter features a colour touch LCD display and IP65-rated protection, making it suitable for a range of installation environments. It supports both on-grid and off-grid operation, with the ability to connect multiple units in parallel for larger systems.

Battery management is flexible, with support for multiple batteries, up to 190A charging and discharging current, and six programmable charging/discharging time periods. The system can also work with a diesel generator, providing an additional option for backup energy supply.

Key Features

5kW single-phase hybrid inverter
Suitable for on-grid and off-grid applications
AC coupling for retrofitting existing solar systems
Up to 16 units can be connected in parallel
Supports multiple batteries in parallel
Maximum battery charging/discharging current of 190A
Six programmable battery charging/discharging periods
Compatible with diesel generator energy storage
Colour touch LCD display
IP65 protection rating
Maximum efficiency of 97.6%
5-year standard warranty, with 10-year warranty option

Specification	Details
Series	SUN-3.6/5/6/7.6/8K-SG05LP1-EU
Model	SUN-5K-SG05LP1-EU
AC Power Range	3.6–8kW
Maximum DC Power	6.5kW
Maximum DC Voltage	500V
Maximum DC Current	13 + 13A
Maximum AC Power	5.5kW
Nominal AC Voltage	220/230V
Maximum AC Current	25/23.9A
Nominal AC Current	22.7/21.7A
Frequency	50/60Hz
Power Factor	0.8 leading – 0.8 lagging
Maximum Efficiency	97.6%
Euro Efficiency	96.5%
Operating Temperature	-40°C to 60°C, with derating above 45°C
Protection Rating	IP65
Warranty	5
